Towards a new dimension of greater strength and robustness on the seas.

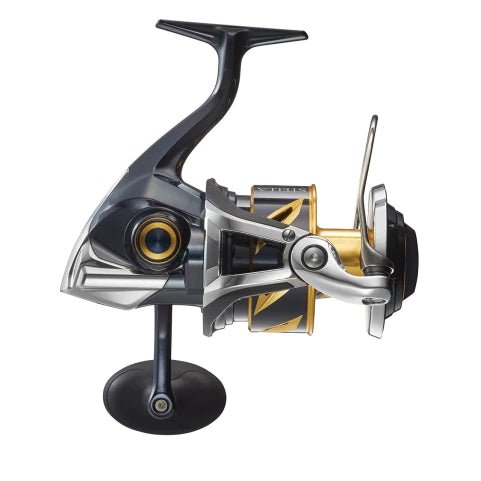

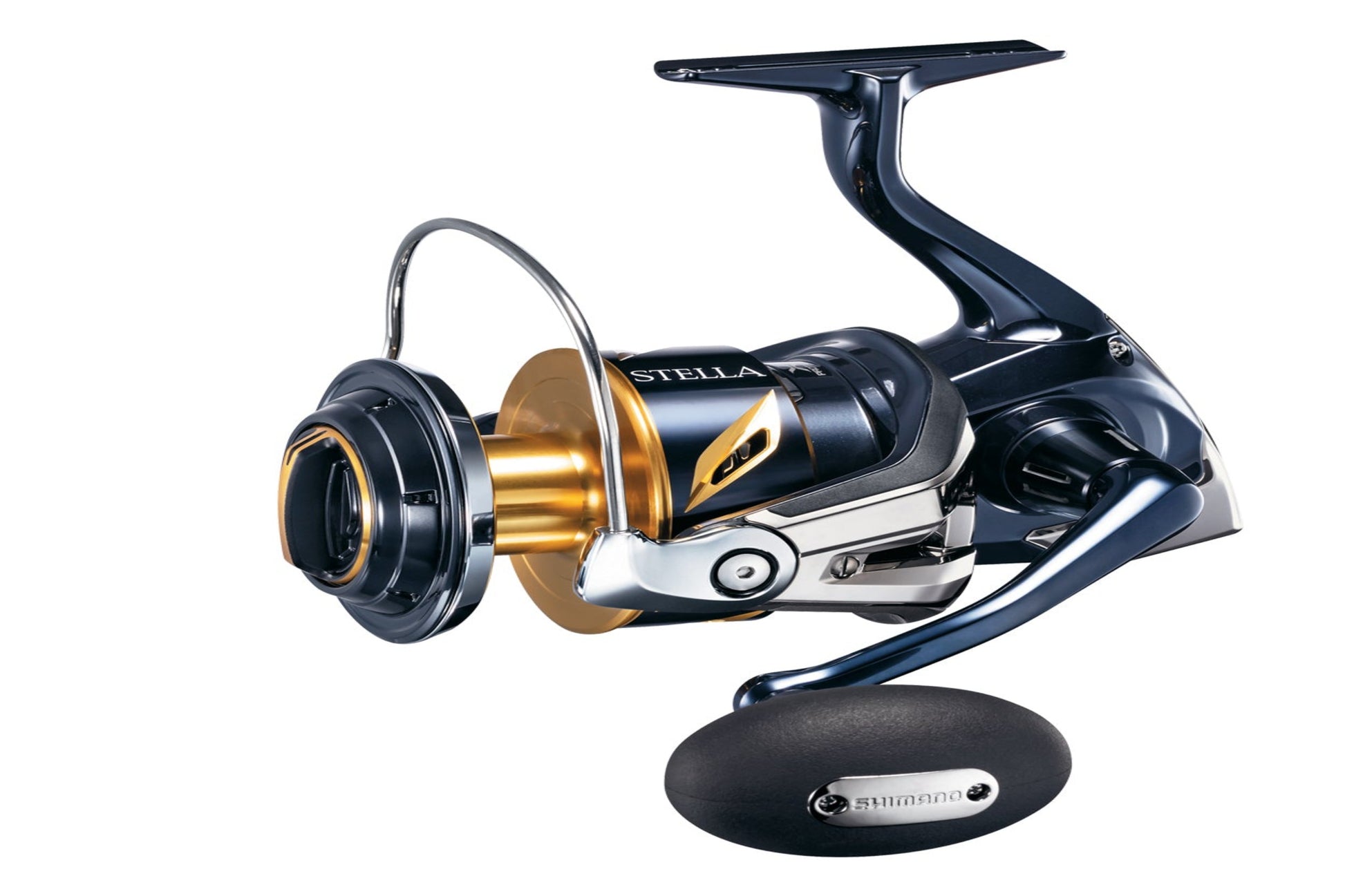

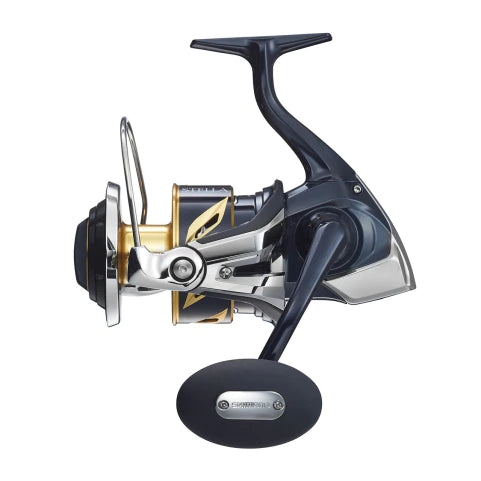

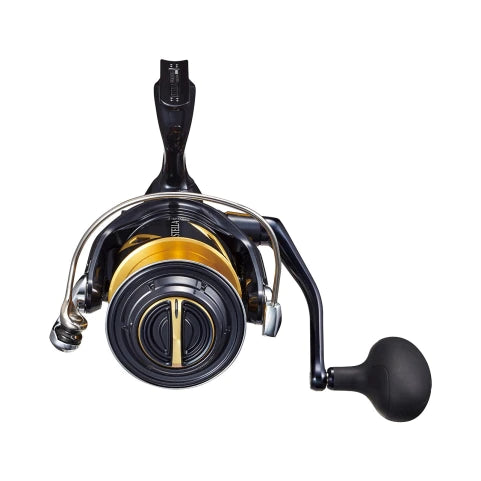

Available in 8000, 10000 and 14000 sizes, Stella SW features a Hagane body which boasts a highly rigid metal construction. This means improved impact resistance and less body flex. At the heart of the reel, state of the art Hagane gears are cold forged for lasting durability and smoothness. Infinity Drive Technology offers an improved winding experience, optimizing winding torque by 26%. Silent Drive further improves smoothness by eliminating worm shaft and drive gear play. An all new Shimano Heatsink drag improves performance by transferring heat away from the spool, reducing spool surface temperature by up to 30% degrees. X Protect and X Shield ensure your investment is guarded from the harsh elements of a saltwater environment so you can fish with confidence. 2019 Stella SW is lighter, more powerful and more reliable than ever before. ※ 8000 Size models are for braided line use only.
|
SKU NUMBER |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SKU NUMBER |
GEAR RATIO |
MAXIMUM DRAG FORCE(KG) |
WEIGHT (G) |
SPOOL RING DIA(MM) / SPOOL STROKE DIA(MM) |
NYLON MONO (NO.-M) |
FLUORO (NO.-M) |
PE BRAIDED (NO.-M) |
POWER PRO (LB-YD) |
LINE RETRIEVE / CRANK (CM) |
HANDLE LENGTH (MM) |
BEARINGS |
JDM CODE |
|
|
SKU NUMBER |
GEAR RATIO |
MAXIMUM DRAG FORCE(KG) |
WEIGHT (G) |
SPOOL RING DIA(MM) / SPOOL STROKE DIA(MM) |
NYLON MONO (NO.-M) |
FLUORO (NO.-M) |
PE BRAIDED (NO.-M) |
POWER PRO (LB-YD) |
LINE RETRIEVE / CRANK (CM) |
HANDLE LENGTH (MM) |
BEARINGS |
JDM CODE |
|
| 4000HG | 5.7 | 11 | 355 | 52/19 | 3.5-170, 4-150, 5-125 | 3-190, 4-145, 5-115 | 1-490, 1.5-320, 2-240 | 15-230, 30-180, 50-120 | 93 | 60 | 12/1 | - | |
| 4000XG | 6.2 | 11 | 355 | 52/19 | 3.5-170, 4-150, 5-125 | 3-190, 4-145, 5-115 | 1-490, 1.5-320, 2-240 | 15-230, 30-180, 50-120 | 101 | 60 | 12/1 | - | |
| 5000HG | 5.7 | 13 | 420 | 54/19 | 4-200, 5-150, 6-130 | - | 2-350, 3-240, 4-170 | 20-245, 30-225, 40-175 | 97 | 65 | 13/1 | - | |
| 5000XG | 6.2 | 13 | 420 | 54/19 | 4-200, 5-150, 6-130 | - | 2-350, 3-240, 4-170 | 20-245, 30-225, 40-175 | 105 | 65 | 13/1 | - | |
| 6000PG | 4.6 | 13 | 425 | 57.5/19 | 4-240, 5-190, 6-160 | - | 2-440, 3-300, 4-210 | 30-290, 50-195, 65-140 | 83 | 65 | 13/1 | - | |
| 6000HG | 5.7 | 13 | 425 | 57.5/19 | 4-240, 5-190, 6-160 | - | 2-440, 3-300, 4-210 | 30-290, 50-195, 65-140 | 103 | 65 | 13/1 | - | |
| 6000XG | 6.2 | 13 | 425 | 57.5/19 | 4-240, 5-190, 6-160 | - | 2-440, 3-300, 4-210 | 30-290, 50-195, 65-140 | 112 | 65 | 13/1 | - | |
| 8000HG | 5.6 | 25 | 625 | 61/22 | - |
